Insert the pin
The central pin and sleeves are placed through the existing pivot bores.
Permanent pivot-pin repair
Nord-Lock Expander System
An expanding pivot pin system that fits the existing lug bores and removes the play that causes recurring lug wear.
Nord-Lock Group technologyProduct overview
Built for secure, serviceable joints.

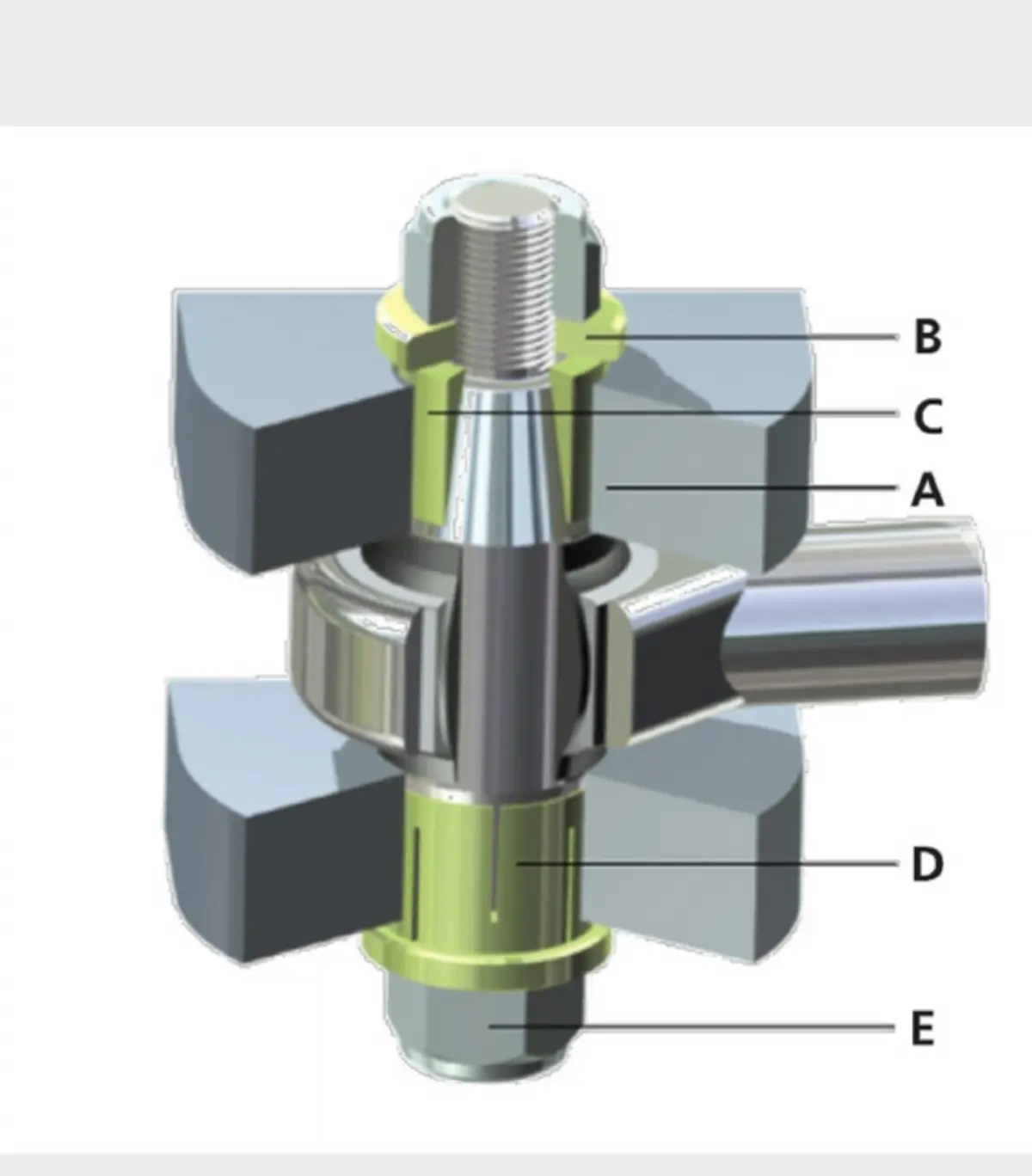

The Expander System replaces a conventional straight pin with a tapered pin, slotted expansion sleeves, tension washers and fasteners. Tightening expands the sleeves to match both pivot lug bores, including worn profiles.
- Installs directly into existing pivot bores
- Conforms to worn or oval lug holes
- Eliminates clearance between the pin and both lugs
- Distributes pressure across the contact area
- Designed for repeatable installation and removal
How it works
Lock both sides of the pivot
Tapered ends and slotted sleeves create a pressure-distributed fit without line boring the lugs for a new oversized pin.
Drive the sleeves
Tightening the end fasteners pulls the slotted sleeves over the tapered pin ends.
Match the bores
The sleeves expand independently to follow the shape of each lug hole.
Remove pivot play
The expanded fit locks the pin at both sides and addresses the movement that accelerates lug wear.
Typical applications
Where this solution fits.
01Excavators, loaders, cranes and bulldozers
02Mining, forestry and agricultural equipment
03Rail rolling stock
04Offshore equipment and wind turbines
05Movable bridges and specialised vehicles
